Our courier will deliver to the specified address 2-3 Days| Specification | Details |
|---|---|
| Brand | ZOTAC |
| Product Series | ZOTAC GAMING |
| Graphics Card Model | GeForce RTX 5050 Twin Edge |
| Part Number / MPN | ZT-B50500E-10M |
| GPU | NVIDIA GeForce RTX 5050 |
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 2560 |
| Boost Clock | 2572 MHz |
| AI TOPS | 421 |
| Video Memory | 8GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Bus | 128-bit |
| Memory Interface | PCI Express 5.0 x8 |
| PCI Express | PCI Express 5.0 |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| NVIDIA DLSS | DLSS 4 |
| Cooling System | Fans + Heatsink |
| Cooling Fans | Dual 90mm BladeLink Fans |
| Backplate | Metal Backplate |
| Form Factor | SFF-Ready |
| Slot Size | 2-Slot |
| DisplayPort | 3 × DisplayPort 2.1b with UHBR20 |
| HDMI | 1 × HDMI |
| HDCP | 2.3 |
| Maximum Display Support | Quad Display |
| Maximum Digital Resolution | Up to 8K |
| DisplayPort Capability | Up to 4K 480Hz / 8K 165Hz with DSC |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Supported OS | Windows 11 / Windows 10 64-bit |
| Power Consumption | 130W |
| Recommended PSU | 550W |
| Power Connector | 1 × 8-Pin PCIe |
| Card Dimensions | 220.5 × 120.25 × 41.6 mm |
| Card Length | 220.5 mm |
| Card Height | 120.25 mm |
| Card Width | 41.6 mm |
| Accessories | User Manual |
| Warranty | 3 Years |

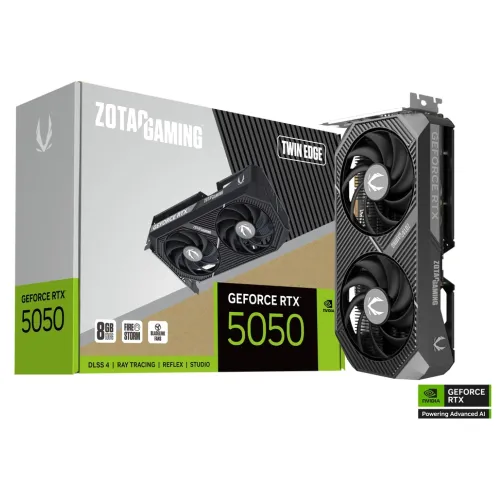

The ZOTAC GAMING GeForce RTX 5050 Twin Edge 8GB GDDR6 is a compact and powerful graphics card designed for modern gaming, content creation, and high-performance desktop PC builds. Powered by the NVIDIA Blackwell architecture, it combines advanced AI capabilities, ray tracing, and DLSS 4 technology to deliver smooth and responsive gaming experiences.
Equipped with 2560 NVIDIA CUDA Cores, the RTX 5050 Twin Edge features a 2572MHz Boost Clock, 8GB of GDDR6 memory, a 128-bit memory bus, and a 20 Gbps memory speed. The card uses a PCI Express 5.0 x8 interface, providing a modern high-speed connection for compatible desktop systems.
The RTX 5050 Twin Edge supports advanced NVIDIA technologies including 4th Generation Ray Tracing Cores, 5th Generation Tensor Cores, NVIDIA DLSS 4, NVIDIA G-SYNC, Game Ready Drivers, and NVIDIA Studio Drivers. These technologies help enhance gaming visuals, AI-powered applications, content creation, and supported professional workloads.

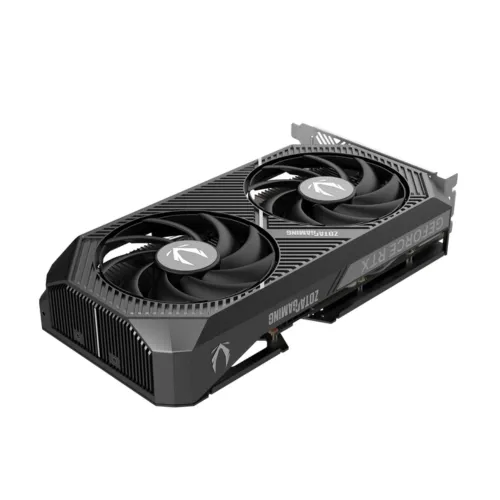

For cooling, the card features a compact dual-fan design with ZOTAC BladeLink Fans and a heatsink, helping maintain stable operating temperatures during demanding workloads. Its SFF-ready compact footprint and 2-slot design make it suitable for a wide range of modern PC builds. A metal backplate adds structural support and contributes to the overall durability of the card.

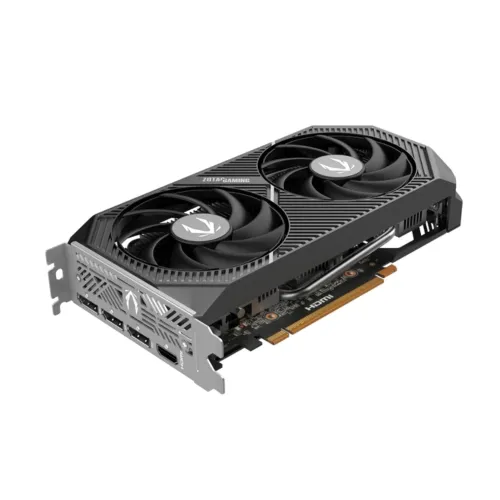

For display connectivity, the graphics card provides 3 × DisplayPort 2.1b with UHBR20 and 1 × HDMI output, with support for up to four displays simultaneously. DisplayPort supports resolutions and refresh rates up to 4K 480Hz or 8K 165Hz with DSC, while the HDMI output supports high-resolution HDR and Variable Refresh Rate features according to the HDMI 2.1b specification.
The ZOTAC GAMING GeForce RTX 5050 Twin Edge has a 130W maximum power consumption and requires one 8-pin PCIe power connector. ZOTAC recommends a 550W power supply for the system. With its combination of Blackwell architecture, DLSS 4, 8GB GDDR6 memory, efficient dual-fan cooling, and compact SFF-ready design, it is well suited for modern gaming and high-performance PC builds.
